เพชรเหมือนเครื่องเคลือบคาร์บอน

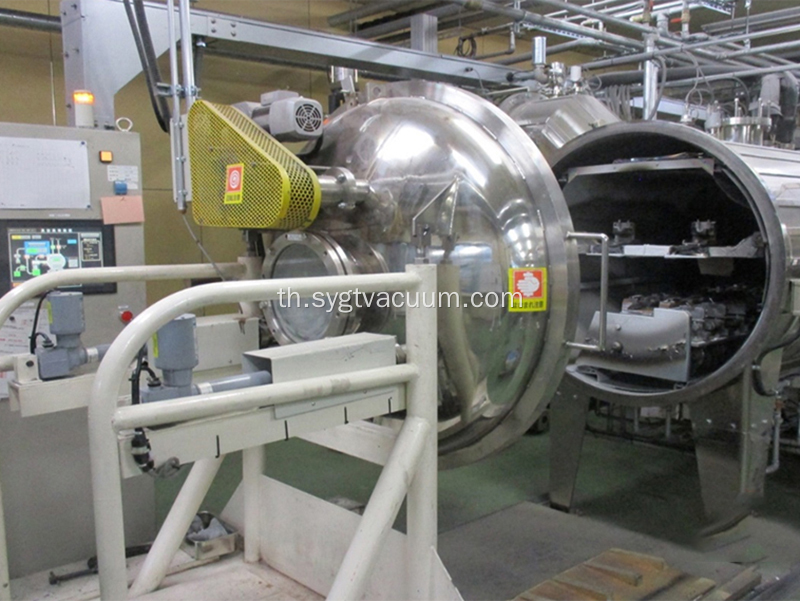

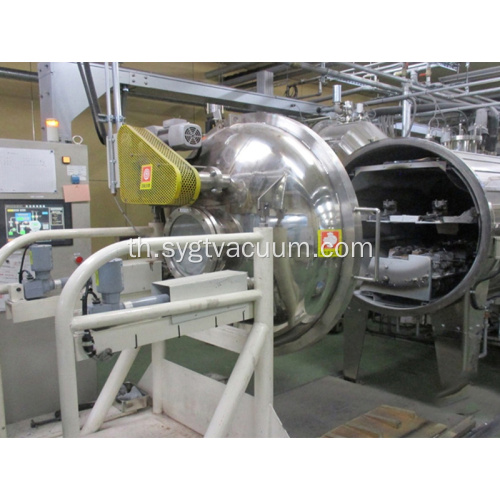

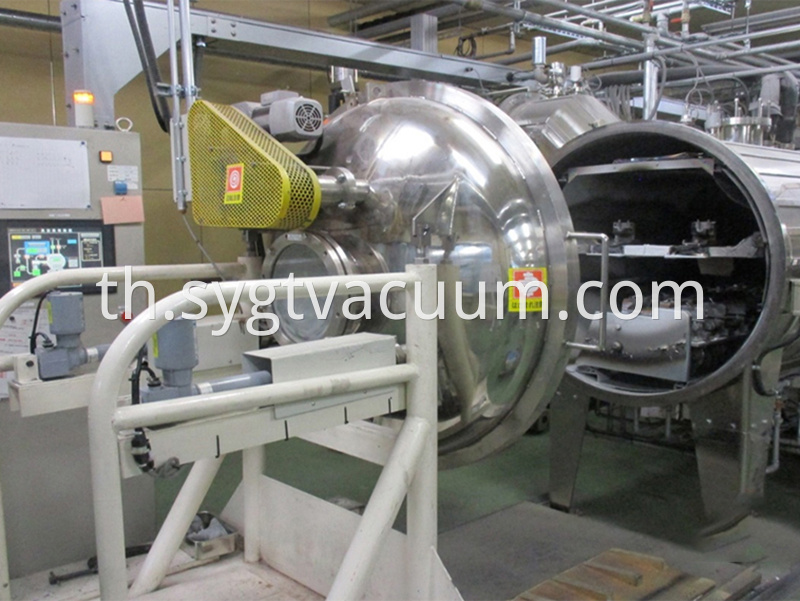

Main technical parameters of DLC diamond-like coating machine

NO.

Function items

Model: GTDLC-01

1

Number of targets that can be installed

Up to 6 universal interfaces can be configured, and flat targets and ion sources can be configured as needed

2

Effective coating area

Diameter 700mm--1000mm, base height 700mm, up to 2000mm, customizable

3

Turret load-bearing capacity

800KG(standard)，up to 1500KG can be customized

4

Maximum heating temperature

350℃

5

Coating cycle

8-16 h/furnace

6

Technical features

1. Unbalanced closed magnetron cathode technology. 2. Intelligent baffle. 3. Uniquely designed anode layer ion source

7

Application range

The equipment can coat: DLC, WC/C, sputtered CrN and the combination of all the above coatings
