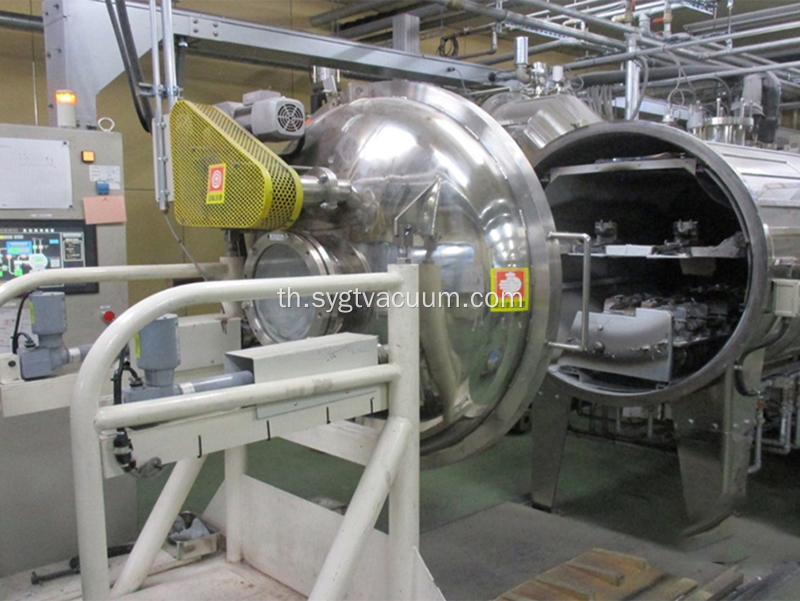

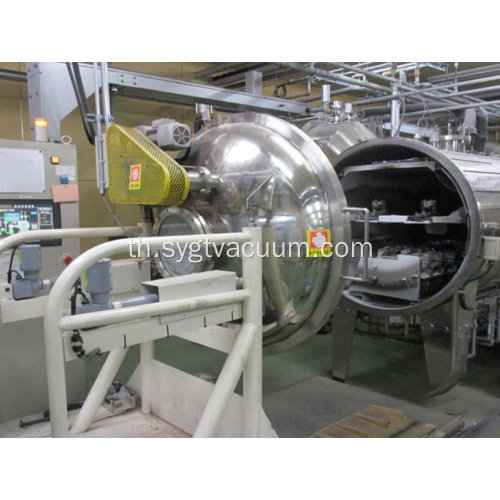

อุปกรณ์เคลือบสูญญากาศไอออนหลายชนิด

PVD

coating

TiN

CrN

TiCN

TiAlN

AlTiN

AlCrN

DLC

Titanium Nitride

Chromium nitride

Titanium nitride carbide

Titanium aluminum nitride

High aluminum titanium

Chromium aluminum nitride

Diamond-like carbon

General properties

Universal

Low affinity

High toughness

High hardness high temperature resistance

High hardness high temperature resistance

High toughness

high temperature resistance

Low affinity

General color

Golden yellow

Silver white

Gray

Purple

black

Gray white

Black gray

Film Thickness（UM）

2-3

1-10

1-3

1-3

1-3

2-8

1-2

hardness（HV）

2000

1800

3500

3200

3400

3000

2500

Thermal stability（℃）

600

700

500

800

900

1000

300

Friction coefficient

0.23

0.25

1-3

0.2

0.35

0.4

0.1

Main application areas

1. Mold parts (stamping, injection molding);

2. Wear-resistant parts;

3. Tools, taps, etc.;

1. Rubber molds, silicone molds, semiconductor packaging molds;

2. Copper alloy and other non-ferrous metal processing tools;

TiCN has a low surface friction coefficient and a high coating hardness. Suitable for heavy milling, tapping, gear hobbing; <0.2mm stainless steel plate stamping

Good red hardness, high surface finish, can be used for high-speed processing and dry cutting. Suitable for a variety of substrates such as mold steel, HSS, and cemented carbide

Good red hardness, suitable for CNC high-speed processing of cemented carbide tools. Tool processing: 80-120m/min

Good red hardness, suitable for high-speed processing, can be used for thick coating. Tool processing: greater than 120m/min

Excellent wear resistance, corrosion resistance, strong bonding with the substrate. Suitable for molds, improve life: When used for tools, it is usually used with TiAlN as the matrix to process non-ferrous metals, graphite and other materials.
